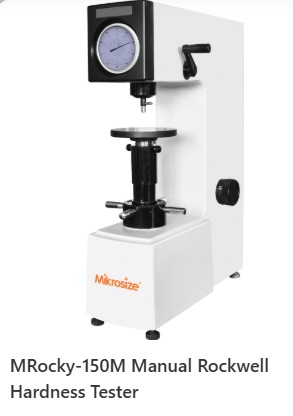

Mikrosize MRocky-150M Manual Rockwell Hardness Tester

Product Features:

  • MRocky-150M Rockwell hardness tester is a general-purpose Rockwell hardness testing instrument.
  • It is suitable for Rockwell hardness tests of materials and requires no power supply.
  • The speed of applying test force is adjusted by a hydraulic buffer, and the test force is changed by rotating the loadselection.
  • The instrument features easy operation, stable performance and wide application.
  • Integrated cast iron structure with stable rigidity.
  • Easy to operate and cost-effective.

Product Applications:

  • Suitable for hardness measurement of quenched, tempered, annealed, and cold-hardened castings, malleable castings, hard alloy steels, aluminum alloys, copper alloys, bearing steels, and other materials.

Technical Specifications

Model

MRocky-150M

Initial Test Force

10kgf (98.07N)

Total Test Force

60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)

Indenter Specifications

Diamond Rockwell indenter, Φ1.588 mm ball indenter

Test Force Application

Manual

Hardness Reading

Rockwell dial reading

Hardness Resolution

0.5HR

Test Height

185mm

Test Throat

165mm

Standards Complied

ISO 6508,ASTM E18,JIS Z2245,GB/T 230.2

Dimensions

520×245×700mm,Packing Size: 650×370×950mm

Weight

Net Weight:78kg,Gross Weight:100kg
